Using high-efficiency 182 series PERC half-cell technology, the product has higher output power and excels in shading loss and temperature coefficient. At the same time, the cell half-cutting technology effectively reduces the risk of hot spots in high-power components, demonstrating better power generation performance and reliability in system applications.

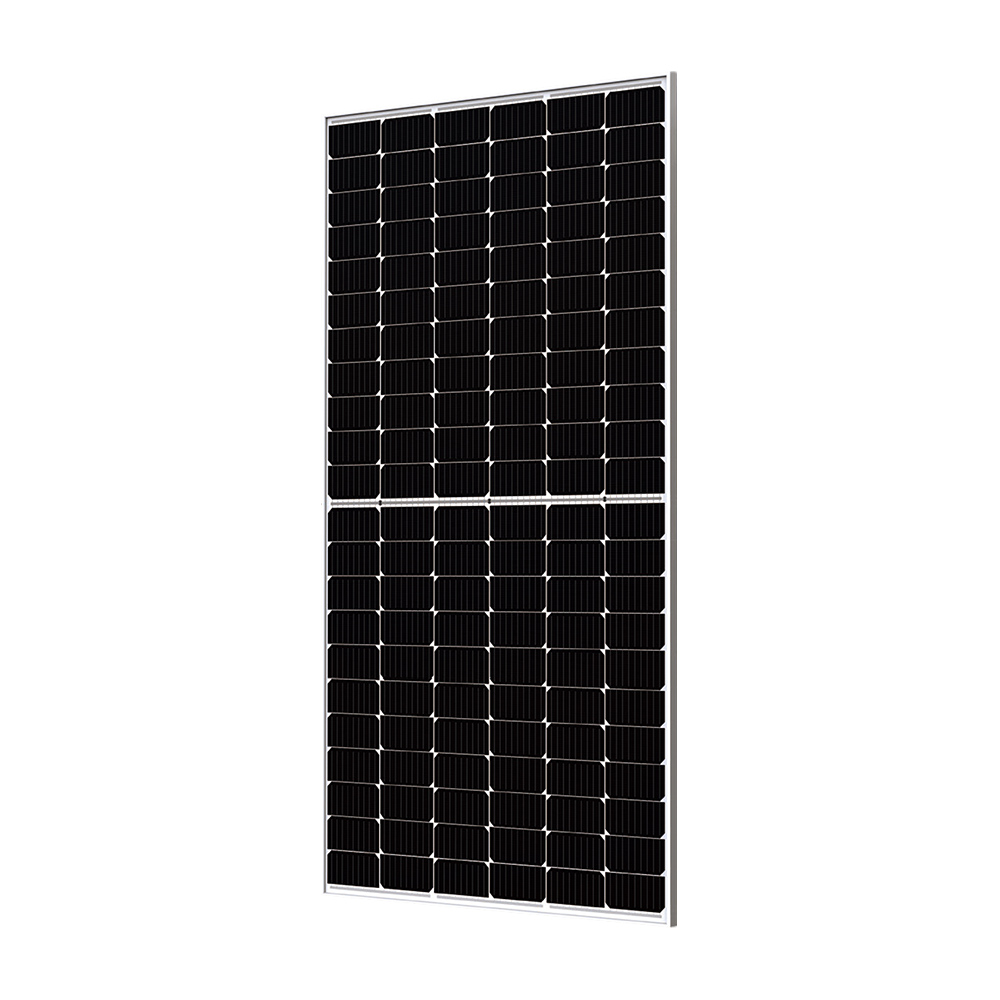

Standard Module(PERC)
| Product Type | CS-SM-P525-550 |
| Maximum Power [W] | 525-550 |
| Open Circuit Voltage [V] | 49.59-50.33 |
| Short Circuit Current [A] | 13.55-13.9 |
| Maximum Power Point Voltage [V] | 41.47-42.28 |
| Maximum Power Point Current [A] | 12.66-13.01 |
| Weight per pc. [kg] | 28.5 (±0.5) |
| Thickness [mm] | 35(±1) |
| Dimension L*W*H [mm] | 2279*1134*35(±1) |
| Maximum System Voltage [V] | 1,500 |
| Maximum Fuse Rating [A] | 25 |
| Chip type | Monocrystalline silicon PERC |
| Front cover glass | 3.2mm high light transmittance, low iron, tempered glass |
| Juntion Box | IP68, three bypass diodes |
| Maximum positive static load [Pa[] | 5400 |
| Operating temperrature [℃] | -40 to +85 |
| NOCT | 45℃ |
| Peak power （Pmpp）temperature coefficient | 0.29%/℃ |
| Open Circuit Voltage [Voc] temperature coefficient | 0.25%/℃ |
| Short Circuit Current [Isc] temperature coefficent | 0.045%/℃ |
