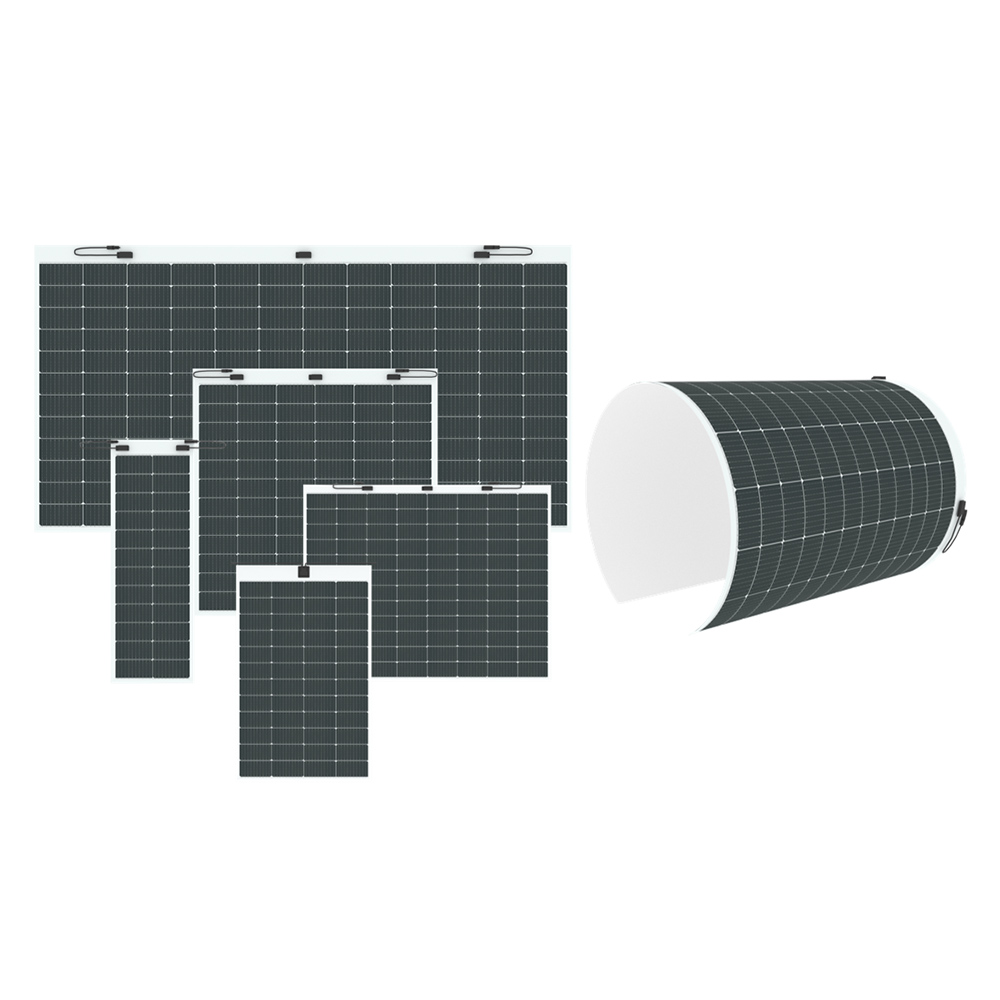

Crystalline silicon lightweight flexible photovoltaic modules are light, thin and flexible, suitable for installation on any surface. The surface of the module uses patented packaging materials, which are not only tough and bendable, but also have high strength to resist hail impact and avoid hidden cracks in the crystalline silicon cells.
Features of Crystalline Silicon Lightweight Flexible Photovoltaic Modules
Low-weight - Areal weight 2.9 kg/m2 , Less than 30% of traditional glass-based solar modules.
Thin Thickness - 1.8 mm (junction box not included), Only 50% of traditional glass based solar modules.
Flexible - Smallest bending radius of 0.3 m, No cell cracks and no power losses.
High-strength - World's only C-Si flexible module which can endure hail- strike without cell cracks and power losses.
Easy-to-install - No need for PV support bracket, modules can be directly bonded to installation surface by weather resistant glue.
Aesthetics - Module's surface and texture can be customized to meet aesthetic requirements.
Lightweight Module
| Product Type | CS-LMCS510 | CS-LMCS515 | CS-LMCS520 |
| Maximum Power [W] | 510 | 520 | 520 |
| Maximum Power Tolerance [W] | 0/+5 | 0/+5 | 0/+5 |
| Open Circuit Voltage [V] | 49.76 | 49.83 | 49.9 |
| Short Circuit Current [A] | 12.74 | 12.78 | 12.86 |
| Maximum Power Point Voltage [V] | 42.29 | 42.35 | 42.41 |
| Maximum Power Point Current [A] | 12.31 | 12.34 | 12.37 |
| Weight per pc. [kg] | 7.83 (±0.5) | 7.83 (±0.5) | 7.83 (±0.5) |
| Thickness [mm] | 1.8(±1) | 1.8(±1) | 1.8(±1) |
| Dimension L*W*H [mm] | 2250*1200*1.8(±0.5) | 2250*1200*1.8(±0.5) | 2250*1200*1.8(±0.5) |
| Maximum System Voltage [V] | 1,500 | 1,500 | 1,500 |
| Maximum Fuse Rating [A] | 25 | 25 | 25 |
| Front plate | Fluorine film front plate | Fluorine film front plate | Fluorine film front plate |
| Back plate | Reinforced Composites | Reinforced Composites | Reinforced Composites |
| Juntion Box | IP68, MC4 connector | IP68, MC4 connector | IP68, MC4 connector |
| Maximum positive static load [Pa[] | 2400 | 2400 | 2400 |
| Operating temperrature [℃] | -40 to +85 | -40 to +85 | -40 to +85 |
| NOCT | 45℃ | 45℃ | 45℃ |
| Peak power （Pmpp）temperature coefficient | 0.37%/℃ | 0.37%/℃ | 0.37%/℃ |
| Open Circuit Voltage [Voc] temperature coefficient | 0.28%/℃ | 0.28%/℃ | 0.28%/℃ |
| Short Circuit Current [Isc] temperature coefficent | 0.05%/℃ | 0.05%/℃ | 0.05%/℃ |
