Features of CIGS Curved Solar Tile
1. CIGS thin film chips have the advantages of being light, thin, flexible, and having good weak light power generation performance. It’s photoelectric conversion efficiency currently in mass production can reach 16.5%.
2. Curved product design integrating architectural aesthetics, elegant appearance with strong applicability.

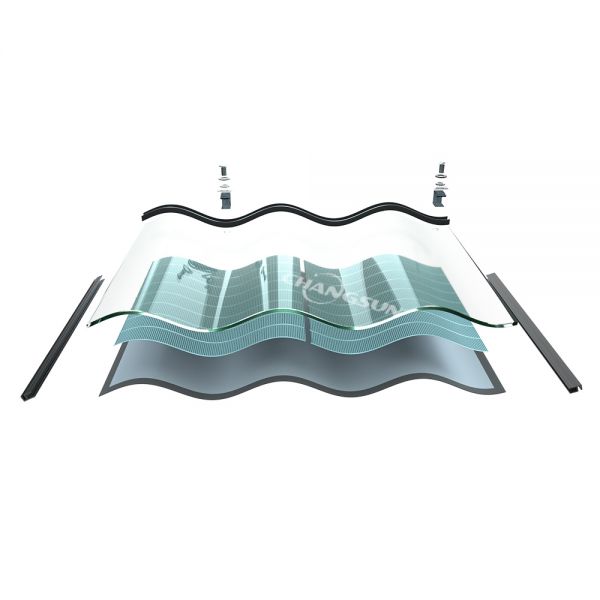

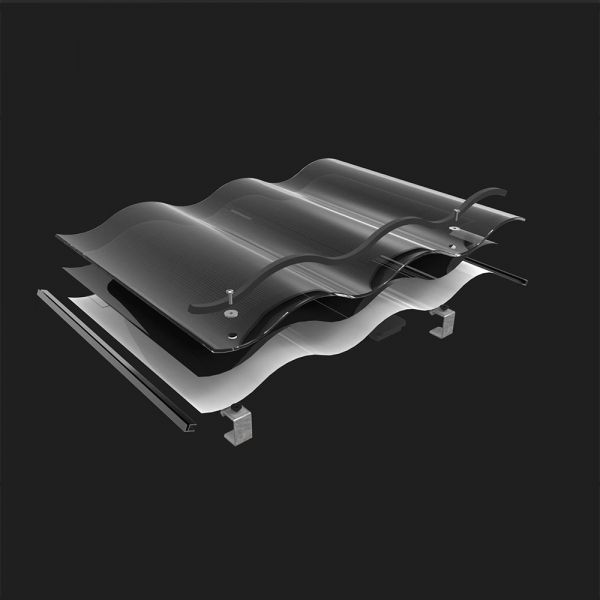

3. 3.2mm+3.2mm double-layer high-transmittance tempered glass structure, the upper surface has a high impact resistance of 5,400 Pa.
4. Composite integrated design drainage, ventilation and heat insulation.
5. Innovative product structure achieves convenient and quick installation.
6. Specially designed to be waterproof to withstand harsh weather.
7. The overall roof design perfectly matches the architecture.
8. Produce green energy and reduce carbon emissions.
Specification of CIGS Curved Solar Tile
| Product Type | CS-CST32-B01 | CS-CST28-R01 |

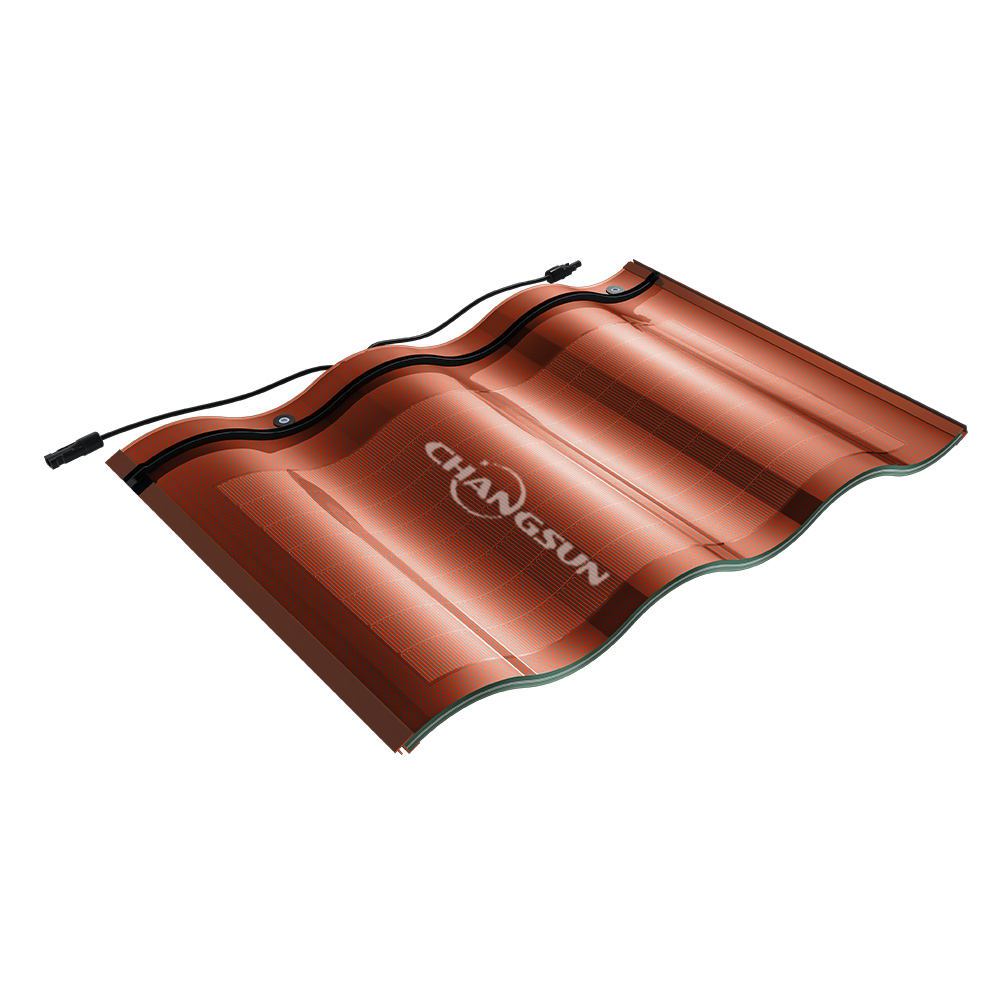

| Color | Black | Red |
| Maximum Power [W] | 32 | 28 |
| Maximum Power Tolerance [W] | 0/+2 | 0/+2 |
| Open Circuit Voltage [V] | 10.7 | 10.3 |
| Short Circuit Current [A] | 4 | 4 |
| Maximum Power Point Voltage [V] | 8.8 | 8.1 |
| Maximum Power Point Current [A] | 3.5 | 3.45 |
| Weight per pc. [kg] | 6.5 (±0.5) | 6.5 (±0.5) |
| Thickness [mm] | 8(±1) | 8(±1) |
| Dimension L*W*H [mm] | 721*500*33(±1) (Curve Arch Height) | 721*500*33(±1) (Curve Arch Height) |
| Maximum System Voltage [V] | 1,000 | 1,000 |
| Maximum Fuse Rating [A] | 7 | 7 |
| Front plate | Super white tempered embossing | Super white tempered embossing |
| Back plate | Super white tempered embossing | Super white tempered embossing |
| Frame | Anodized Aluminium Alloy | Anodized Aluminium Alloy |
| Juntion Box | IP67, MC4 connector | IP67, MC4 connector |
| Maximum positive static load [Pa[] | 5400 | 5400 |
| Operating temperrature [℃] | -40 to +80 | -40 to +80 |
| Hail resistance | Maximum diameter 25mm impact speed 23m/s | Maximum diameter 25mm impact speed 23m/s |
| Fire rating | A | A |
| NOCT | 45℃ | 45℃ |
| Peak power （Pmpp）temperature coefficient | 0.40%/℃ | 0.40%/℃ |
| Open Circuit Voltage [Voc] temperature coefficient | 0.35%/℃ | 0.35%/℃ |
| Short Circuit Current [Isc] temperature coefficent | 0.03%/℃ | 0.03%/℃ |
